Marine Batteries

Our self-developed battery product, focusing on safety, flexibility and environmental adaptability, is widely applicable to various complex application scenarios, providing stable and reliable power support for related equipment. With the core concept of low-carbon, safe and efficient operation, it helps to promote the maritime industry towards a green and intelligent future.

High Safety Performance
Flexible Energy Distribution
Superior Environmental Adaptability

Core Technological Edge

From Nanometers to Meters, Quality Technologies Anticipate Risks Across the Entire Process

Material
Selection

10⁻¹⁰
Particle
Composition

10⁻⁸
Chemical System
Design

10⁻⁶10~10⁻⁴
Electrode
Structure Design

10⁻³10~10⁻¹
Cell Sub-
component Design

10⁻³10~10⁻¹
Cell Performance
Simulation

10⁻²10~10⁻¹
Module
Integration

10⁻¹10~100
System Integration

10⁰10~10¹
User System

Unit:M

Beyond R&D: Leading the Industry with Thousands of Quality Patents

1000

System Safety Technology Patents
25

Quality Big Data Analytics Technology Patents
151

Applied Mechanism and Simulation Technology Patents
424

Testing and Inspection Technology Patents

PPB-Level Defect Rate, Redefining
the Baseline of Quality

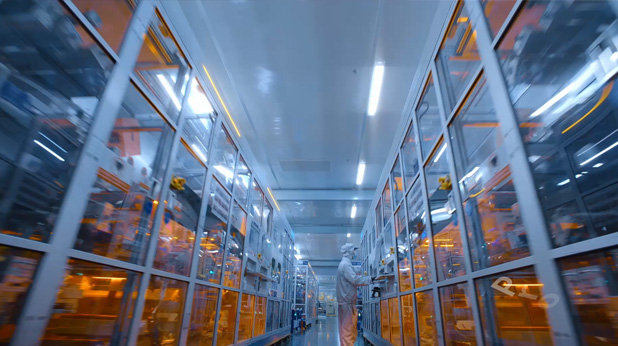

Zero Missed-Defect Detection Capability
- Each cell undergoes over 100 inspection processes before warehousing
- The production line is equipped with more than 7,000 quality control points
- More than 10,000 data items are fully traceable

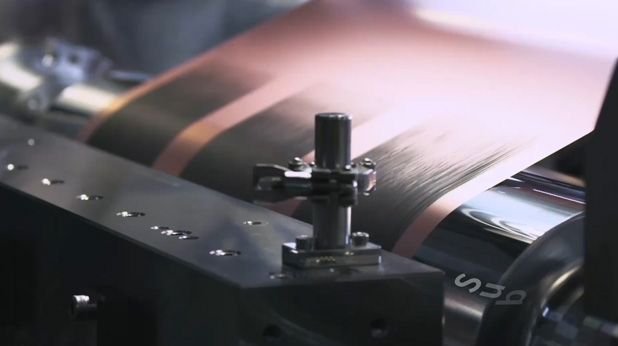

Micron-Level Precision Control
- A substrate one-twentieth the thickness of a human hair, running at speeds of over 100 meters per minute
- Passing through tens of meters of drying ovens with airflow nozzle disturbances
- Achieving a final thickness variation of no more than ±1 micrometer

Material Character Analysis & Product
Test And Validation

300+
Product testing & validation items

Covering GB/T, ISO, IEC, UN, ECE standards

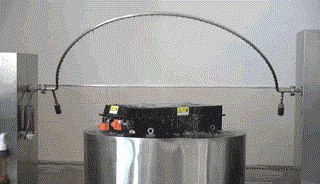

Spray

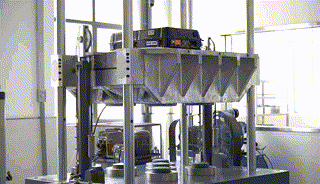

Impact

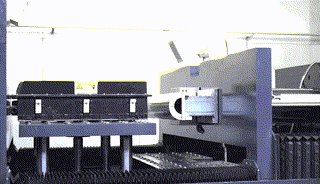

Squeeze

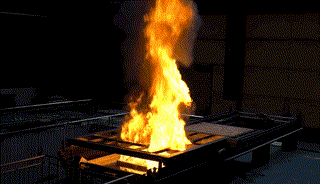

Fire

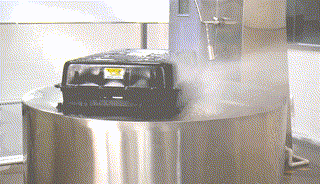

Waterproof

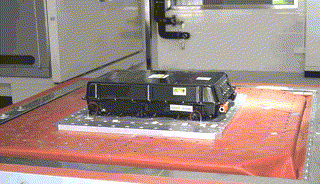

Vibration

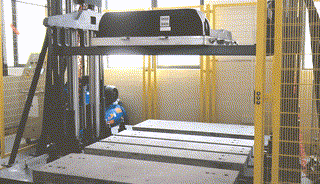

Fall

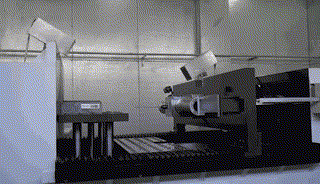

Acupuncture

300+
Product testing & validation items

Covering GB/T, ISO, IEC, UN, ECE standards
Spray
Impact
Squeeze
Fire
Waterproof
Vibration
Fall
Acupuncture

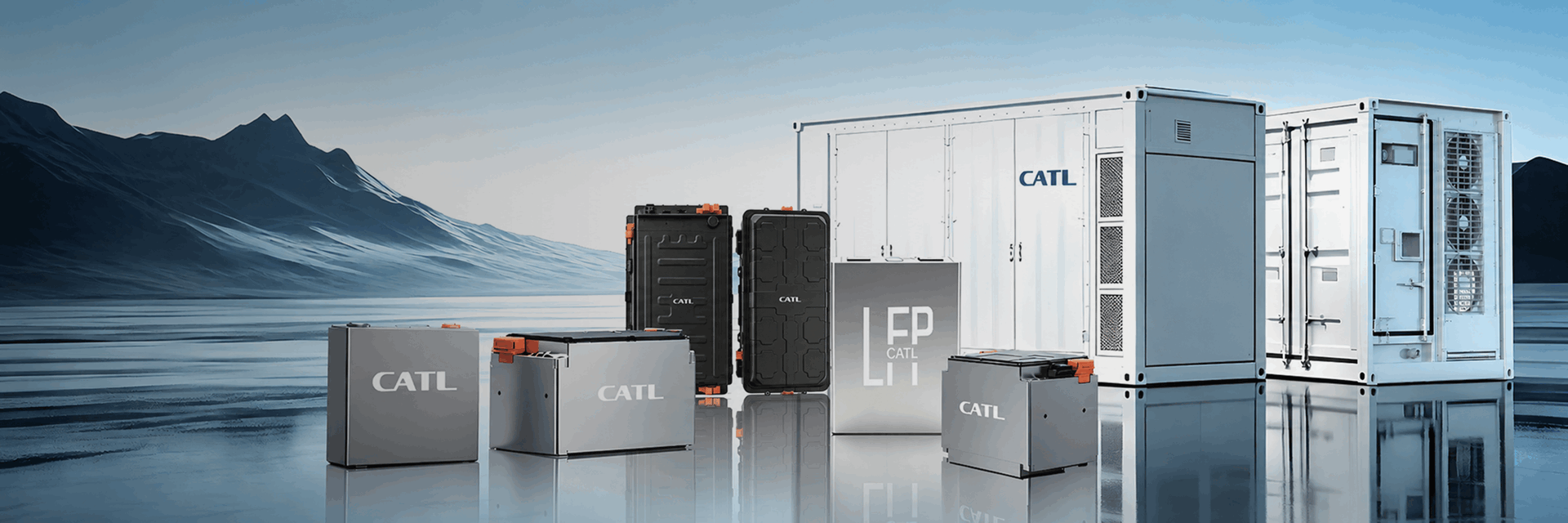

Related Products

Battery Cell

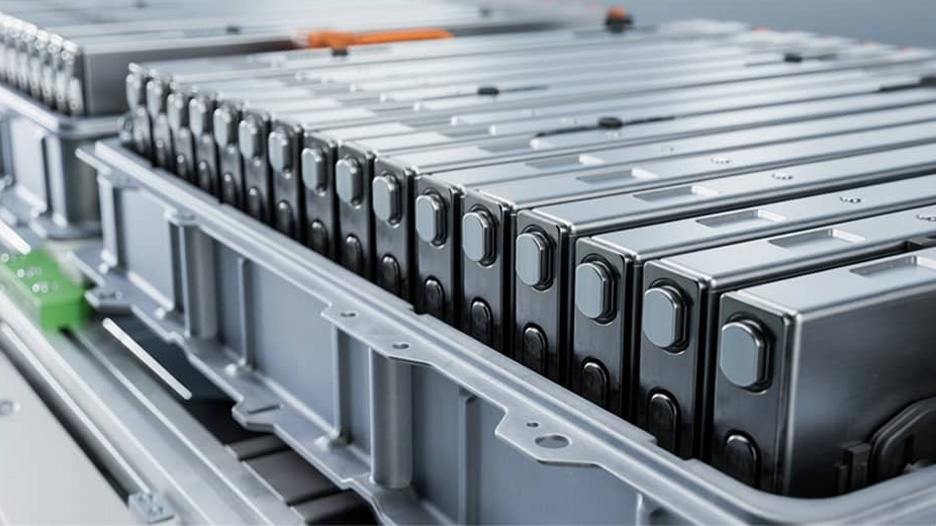

Battery Module
Battery Pack
Containerized Mobile Power

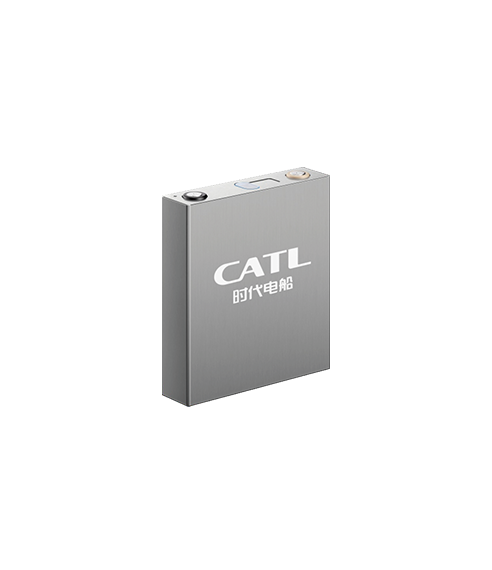

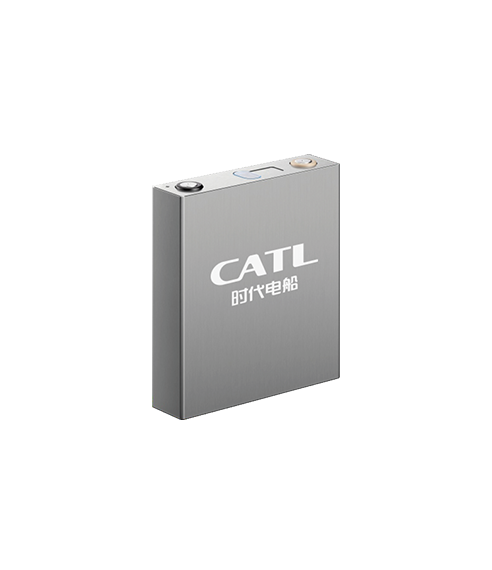

- Energy Type Cell-317Ah
  - Capacity (Ah)

    317
  - Chemistry

    LFP
  - Dimensions (mm)

    71.5*174*207
  - Weightl (kg)

    5.55
  - Nominal Energy (Wh)

    1020.74
  - Nominal Voltage (V)

    3.22V@1/3C
  - C-rate (Charge/Discharge)

    1C/1C

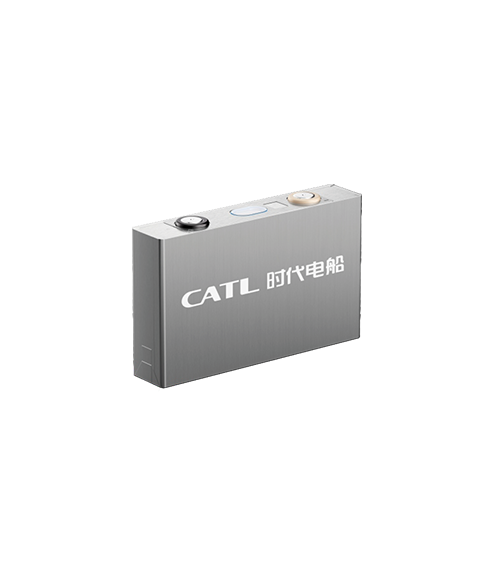

- High C-rate Cell-130Ah
  - Capacityl (Ah)

    130
  - Chemistry

    LFP
  - Dimensions (mm)

    41.02*202*122.9
  - Weightl (kg)

    2.3
  - Nominal Energy (wh)

    418.6
  - Nominal Voltage (V)

    3.22V@1/3C
  - C-rate (Charge/Discharge)

    2C/2C

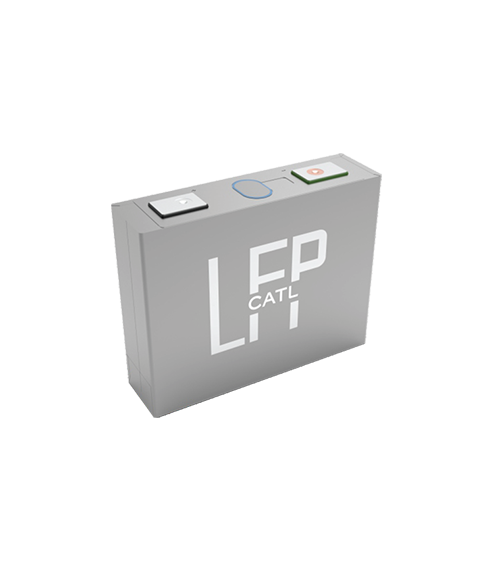

- Long-Lifespan Cell-268Ah
  - Capacity (Ah)

    268
  - Chemistry

    LFP
  - Dimensions (mm)

    50.1*200*215.66
  - Weight (kg)

    4.65
  - Nominal Energy (Wh)

    862.96
  - Nominal Voltage (V)

    3.22V@1/3C
  - C-rate (Charge/Discharge)

    1C/1C
- Long-Lifespan Cell-530Ah
  - Capacityl (Ah)

    530
  - Chemistry

    LFP
  - Dimensions (mm)

    73.05*274.6*215.7
  - Weight (kg)

    9.46
  - Nominal Energy (Wh)

    1696
  - Nominal Voltage (V)

    3.2V@1/3C
  - C-rate (Charge/Discharge)

    0.5C/0.5C

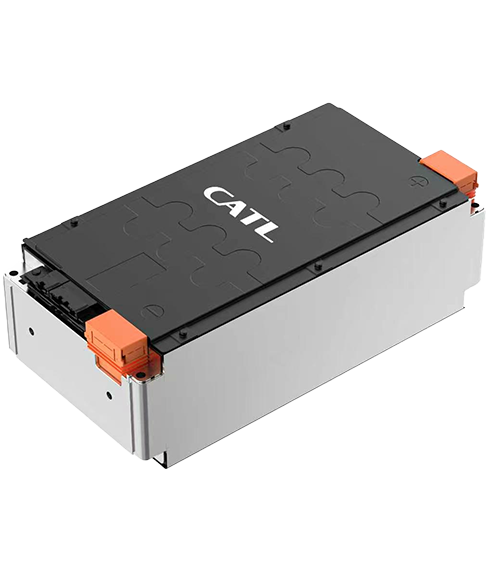

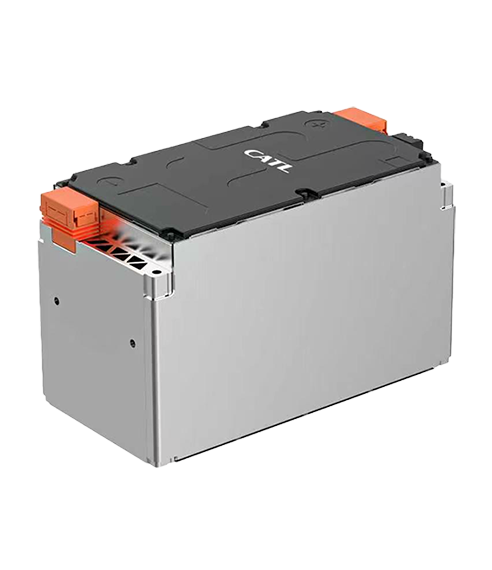

- High C-rate Module-130Ah
  L130G01
  - Cell (Ah)

    130
  - Energy (KWh)

    3.348
  - Chemistry

    LFP
  - Dimensions (mm)

    400*210*135
  - Module Assembly

    1P8S
  - Energy Density (Wh/Kg)

    ≥155
  - Nominal Voltage (V)

    25.76
  - Voltage Range (V)

    20~29.2
  - Max.System Voltage(V)

    1250
  - Lifespan (Y)

    ~10
  - Max. Charge/Discharge Rate

    2C
  - Operating Temperature (°C)

    -20-60 Charging
    -30-60 Discharging
  - Certification

    CCS, ABS

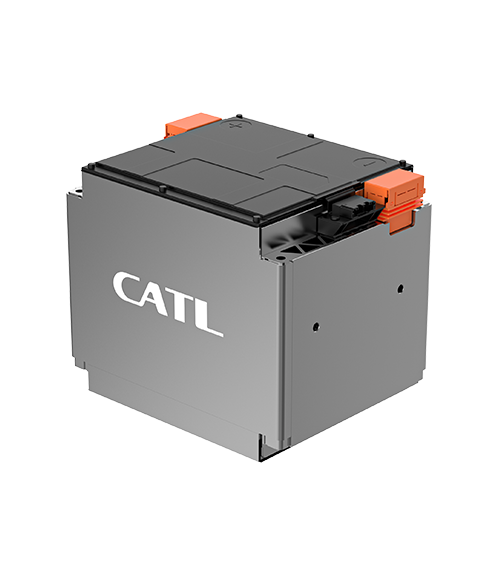

- Long-Lifespan Module-268Ah
  L268G01
  - Cell (Ah)

    268
  - Energy (kWh)

    3.451
  - Chemistry

    LFP
  - Dimensions (mm)

    271*211.9*223.5
  - Module Assembly

    1P4S
  - Energy Density (Wh/Kg)

    ≥150
  - Nominal Voltage (V)

    12.88
  - Voltage Range (V)

    10~14.6
  - Maximum System Voltage(V)

    1800
  - Lifetime (Year)

    ~15
  - Max. Charge/Discharge Rate

    1C
  - Operating Temperature (°C)

    -5-60 Charging
    -35-60 Discharging
  - Certification

    CCS
- Energy Type Module-317Ah
  L317G02
  - Cell (Ah)

    317
  - Energy (kWh)

    4.082
  - Chemistry

    LFP
  - Dimensions (mm)

    348.6*178.9*213
  - Module Assembly

    1P4S
  - Energy Density (Wh/Kg)

    ≥155
  - Nominal Voltage (V)

    12.88
  - Voltage Range (V)

    10~14.6
  - Maximum System Voltage (V)

    1000
  - Lifetime (Year)

    ~8
  - Max. Charge/Discharge Rate

    1C
  - Operating Temperature (°C)

    -5-60 Charging
    -35-60 Discharging
  - Certification

    CCS

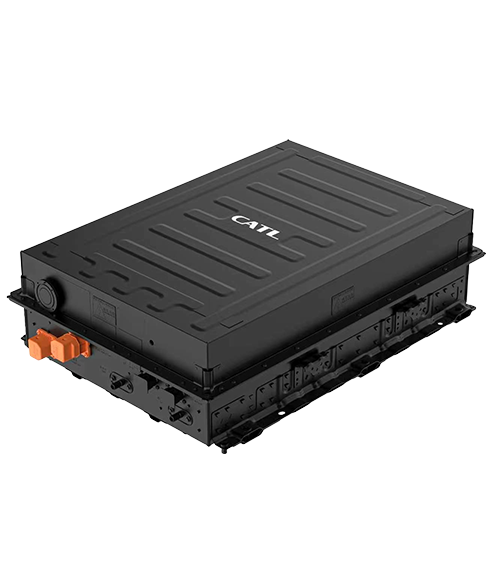

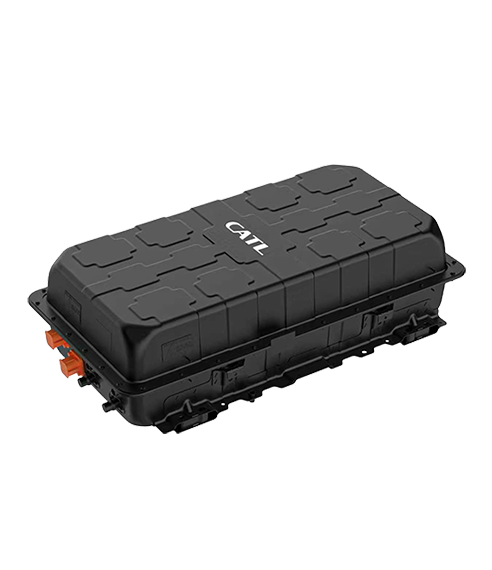

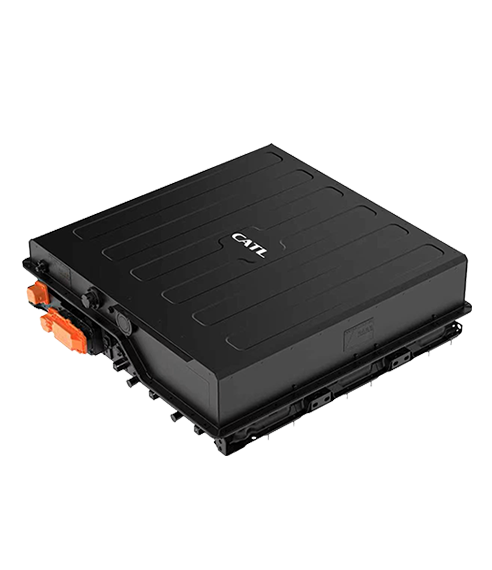

- Long-Lifespan Pack 01-530Ah
  L530G01
  - Cell (Ah)

    530
  - Energy (kWh)

    30.528
  - Thermal Management

    Water Cooling/Air Cooling
  - Dimensions (mm)

    901*636*256
  - Energy Density (Wh/Kg)

    ≥140
  - Nominal Voltage (V)

    57.6
  - Voltage Range (V)

    45~65.7
  - Maximum System Voltage (V)

    1000
  - Lifespan (Y)

    ~15
  - Max.Charge/Discharge Rate

    0.5C
  - IP Level

    IP67
- Long-Lifespan Pack 02-530Ah
  L530G02
  - Cell (Ah)

    530
  - Energy (kWh)

    50.88
  - Thermal Management Method

    Water Cooling/Air Cooling
  - Dimensions (mm)

    960*940*245
  - Energy Density (Wh/Kg)

    ≥145
  - Nominal Voltage (V)

    96
  - Voltage Range (V)

    75~109.5
  - Maximum System Voltage (V)

    1000
  - Lifetime (Year)

    ~15
  - Maximum Charge/Disch arge Rate

    0.5C
  - IP Level

    IP67
- Energy Type Pack-317Ah
  L317G01
  - Cell (Ah)

    317
  - Energy (kWh)

    16.331
  - Thermal Management Method

    Water Cooling/Air Cooling
  - Dimensions (mm)

    873*456*245.7
  - Energy Density (Wh/Kg)

    ≥140
  - Nominal Voltage (V)

    51.52
  - Voltage Range (V)

    40~58.4
  - Maximum System Voltage (V)

    1000
  - Lifetime (Year)

    ~8
  - Maximum Charge/Disch arge Rate

    1C
  - P Level

    IP67

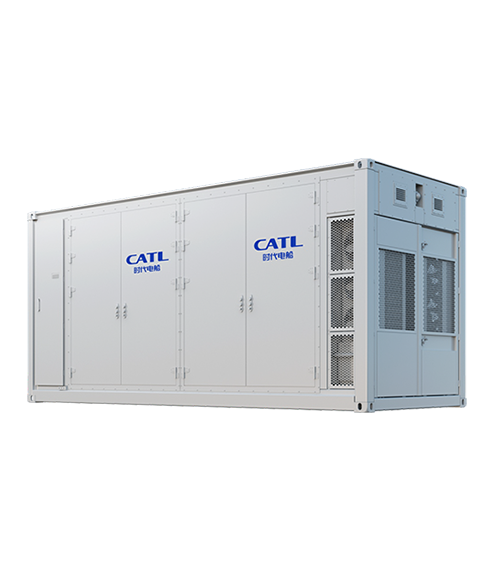

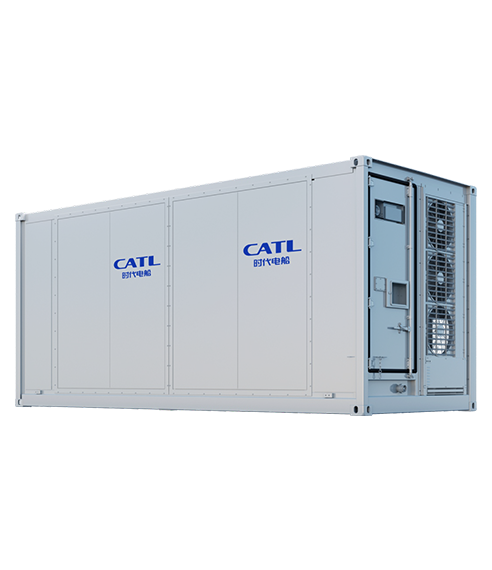

- Single/Dual-Compartment Containerized Mobile Power-317 Ah
  - Energy (KWh)

    1959.82
  - Nominal Voltage (V)

    772.8
  - DC Voltage Range (V)

    600~876
  - System Series/Parallel Configuration

    8P240S
  - Module Series/Parallel Configuration

    1P16S
  - IP Level

    IP56
  - Weight (t)

    27
  - Fire-Fighting System

    Cabin Level
  - Container Dimensions (mm)

    6058*2438*2896
- Long-Lifespan Containerized Mobile Power-530 Ah
  - Energy (KWh)

    0~3663.36 (Configurable)
  - Nominal Voltage (V)

    0~864 (Configurable)
  - DC Voltage Range (V)

    0~985.5 (Configurable)
  - System Series/Parallel Configuration

    8P270S
  - Module Series/Parallel Configuration

    1P30S
  - IP Level

    IP56
  - Weight (t)

    ≤40
  - Fire-Fighting System

    Cabin Level
  - Container Dimensions (mm)

    6058*2438*2896
